KUAIQU series is a digital adjustable DC power supply, which can display voltage and current at the same time.

Product features
Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
Voltage, current, power
Temperature control fan heat dissipation, low noise, long life
USB fixed output 5V 2A

Application field
1. Production line testing.
2. Maintenance of mobile phones, computers and electrical appliances.
3. Product aging, electroplating.
4. Charge the battery.
5. Laboratory, research and teaching.
6. All other equipment requires DC regulated power supply.

Specifications:
Condition: 100% brand new
Model:KUAIQU SPS-C3010
Color:white
Output voltage:0~30V
Output current:0 ~ 10A
Voltage resolution: 0.1V
Current resolution: 0.01A
Ripple voltage: Vpp ≤ 1%
Power impact: CV≤ 1% 10mV
Load impact: CV≤ 1% 10mV

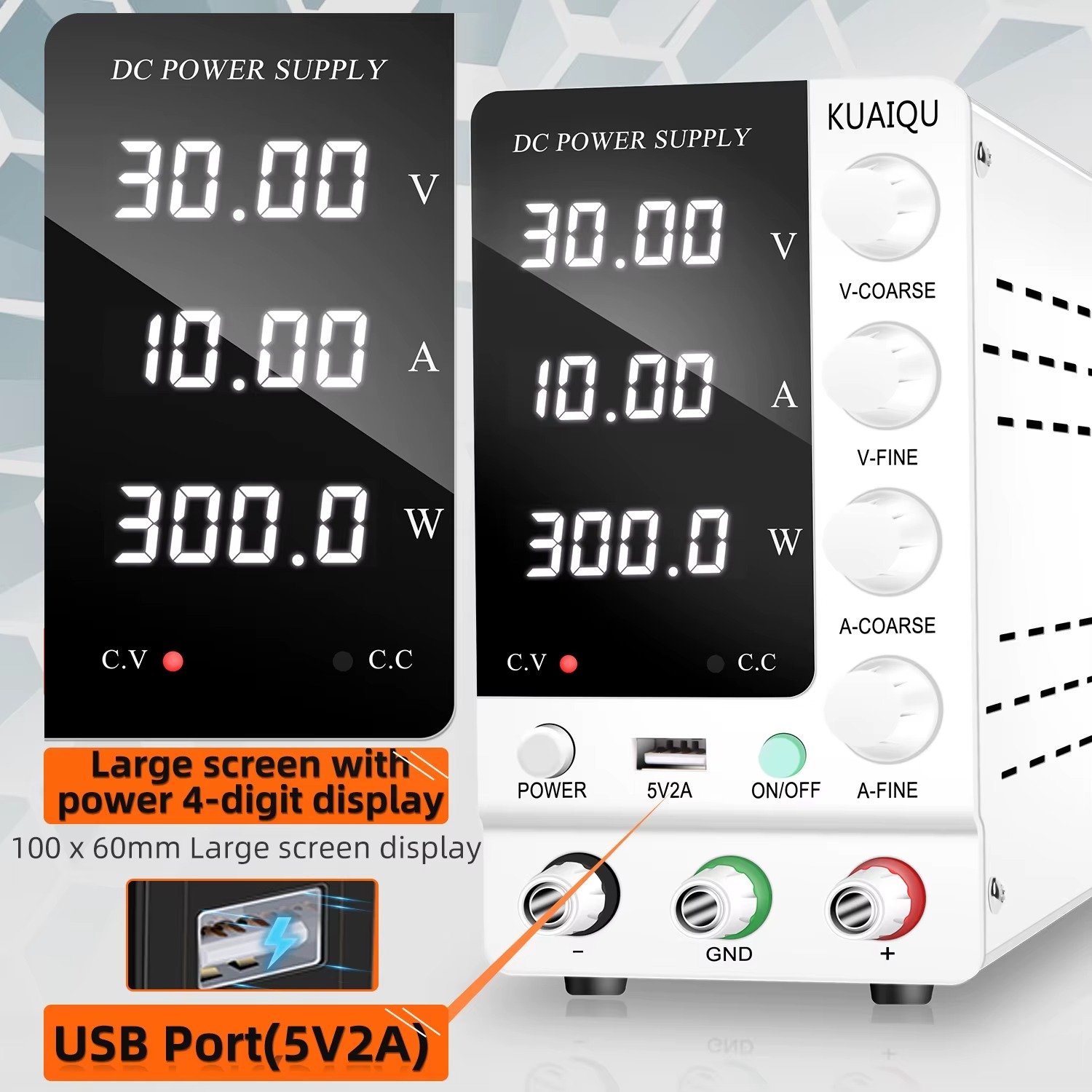

Digital display: 4 LED digital display
Ripple noise: ≤ 1MV
Voltage display accuracy: 1% 1 bit
Current display accuracy: 1% 2 digits
Working environment:-10 45 ℃/ 14 113℉ Rh≤ 90%
Storage environment:-20 60 ℃/ 4 140℉ Rh≤ 80%
Weight: 1595g
Size: 95*220 * 140mm

Key Features:

• Precise Power Regulation

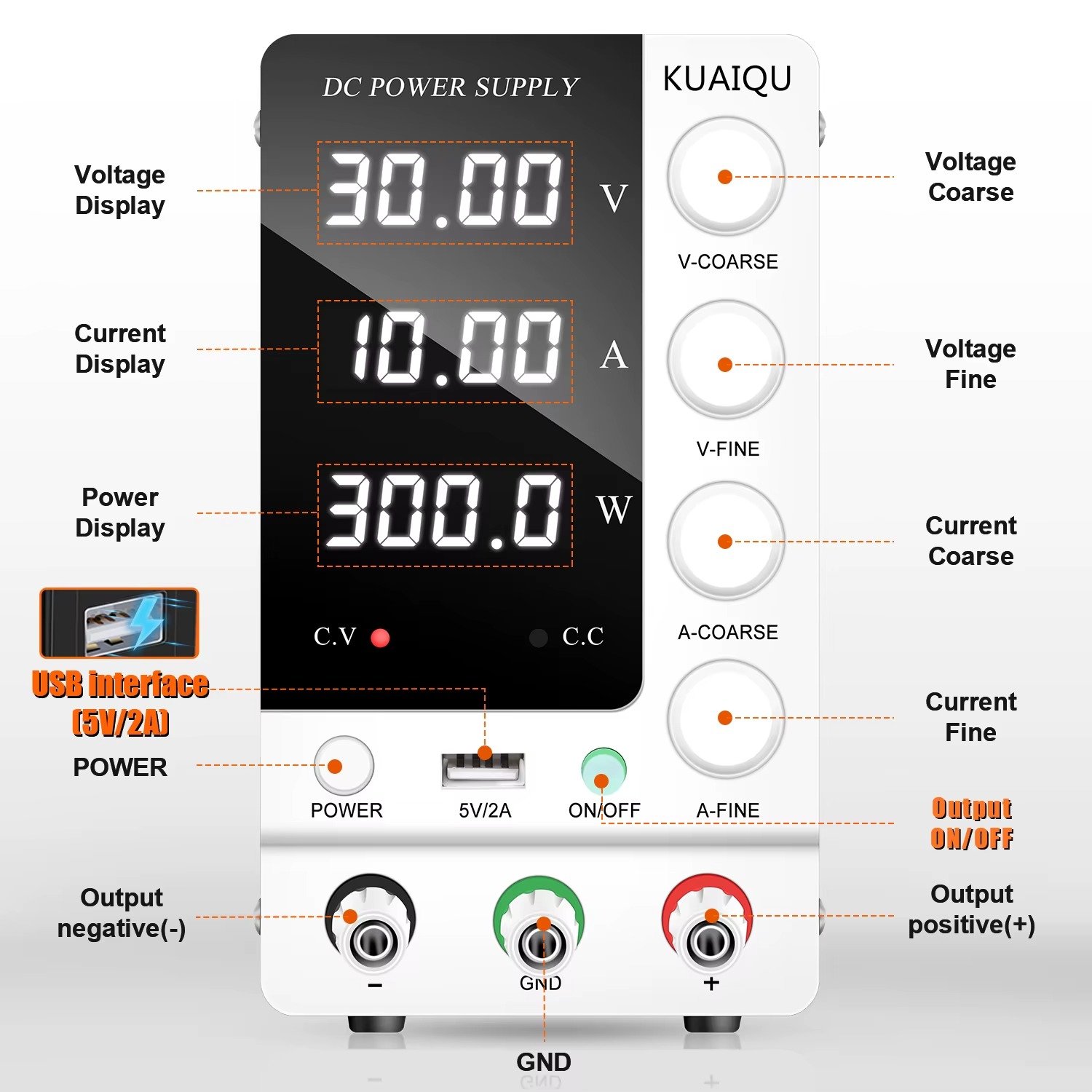

  Digital adjustable DC power supply with simultaneous voltage/current display; supports automatic switching between constant voltage and constant current modes for stable operation.

• High Performance Design

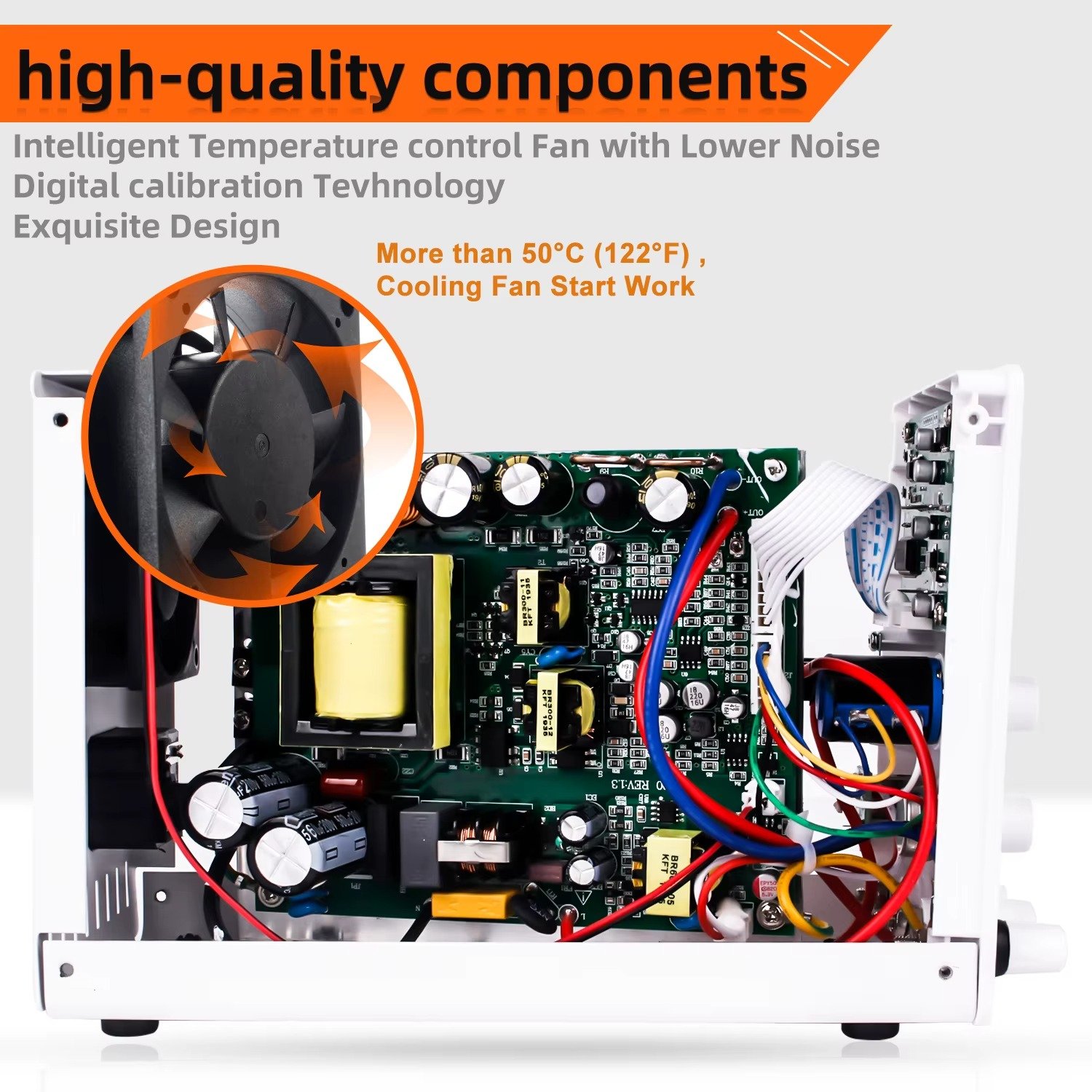

  Compact size, lightweight, and high power density; equipped with a temperature-controlled fan for silent, reliable use and extended service life with low noise.

• Convenient Features
  Built-in 5V 2A USB port for easy device charging; 4-digit digital display for clear parameter monitoring; comes with an output switch for safe operation.


Applications:

• Laboratory Use: Reliable power for research and experiments.
• Electronics Testing: Maintenance of mobile phones, computers, and electrical appliances.
• Battery Charging: Safe, controlled charging for batteries.
• Product Aging: Power supply for electronic component aging tests.
• Electroplating: Stable DC power for electroplating processes.
• Other DC Applications: Suitable for any equipment requiring regulated DC power.

Quality Check and Terms of Service:

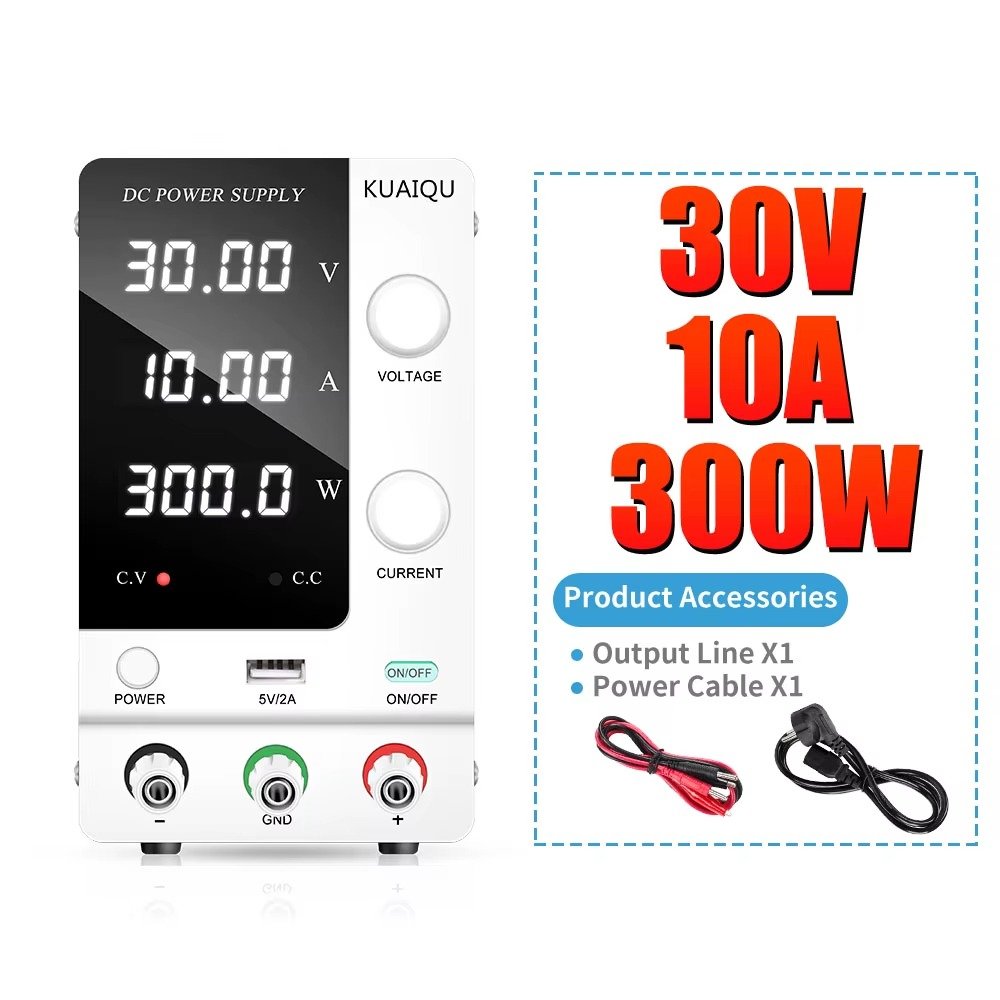

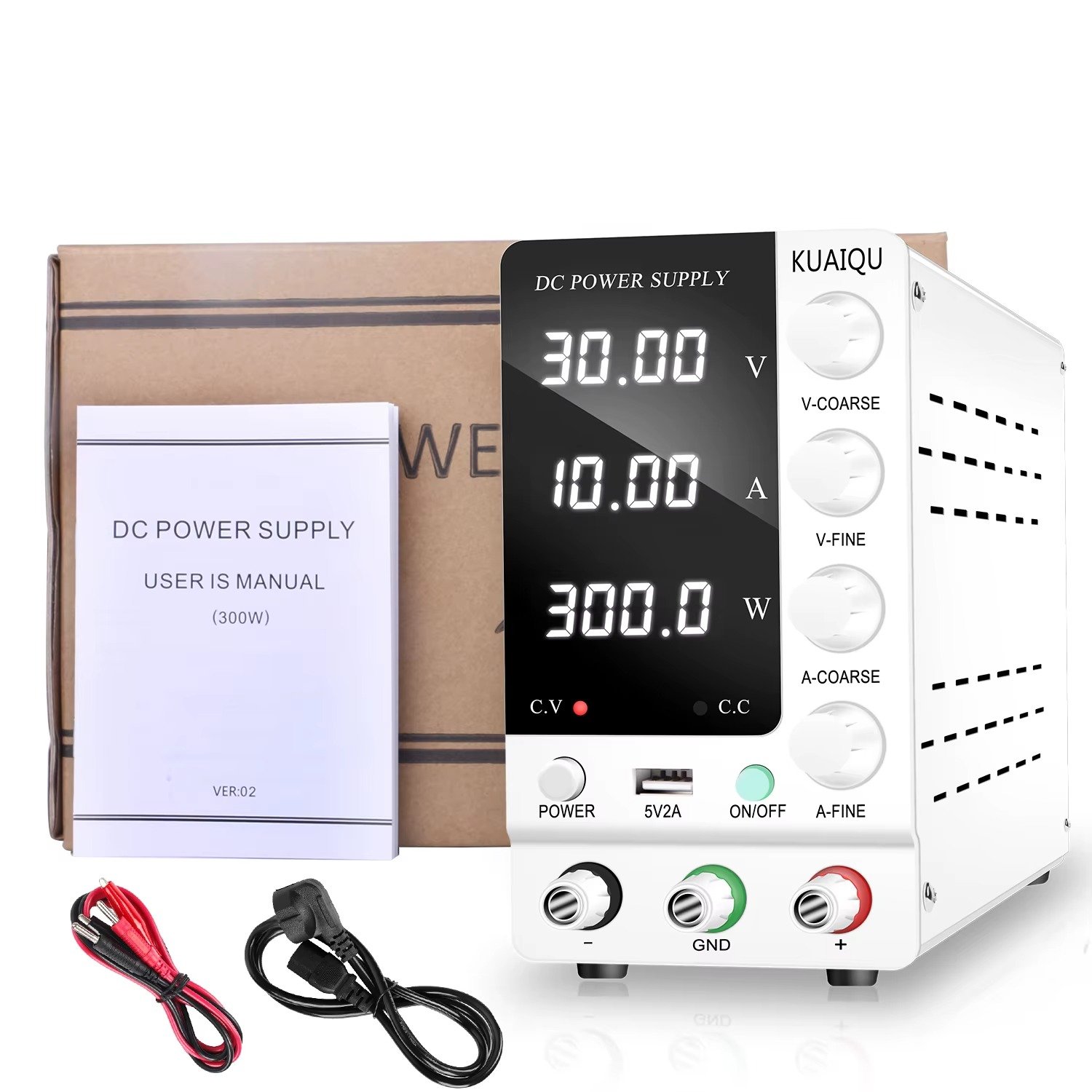

• Package includes: DC Power Supply *1, Output Power Cord *1, Input Power Cord *1, User Manual *1, Warranty Card *1.
• Has passed CE & FCC Certification.
• All DC power supplies and accessories are inspected before shipment to ensure good quality.
• Customer support: Contact us with any questions, and we’ll respond within 24 hours.
