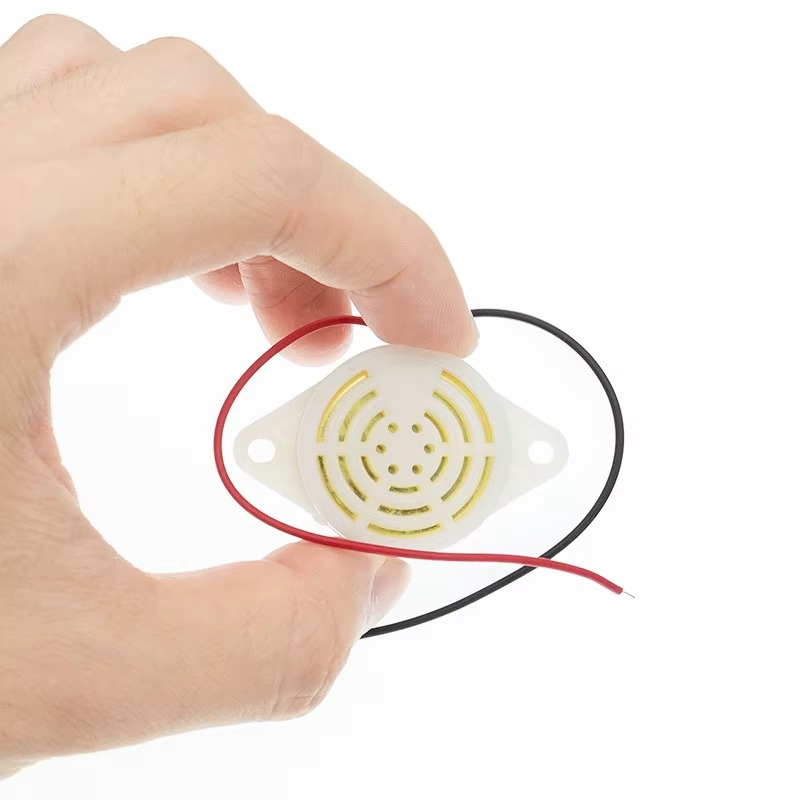

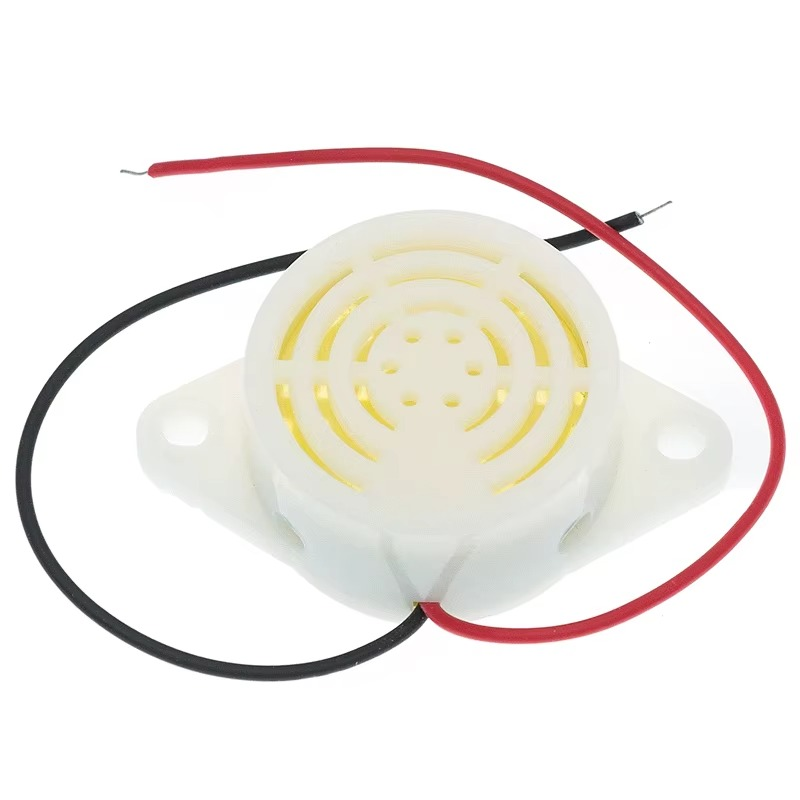

SFM-27 Electronic Buzzer - Intermittent Sound

Description

This is a generic buzzer that will make a sound when voltage is applied from 3-24VDC. Unlike some other piezo based buzzers, this buzzer will make a sound whenever voltage is applied continuously until the power source is removed.

Feature:

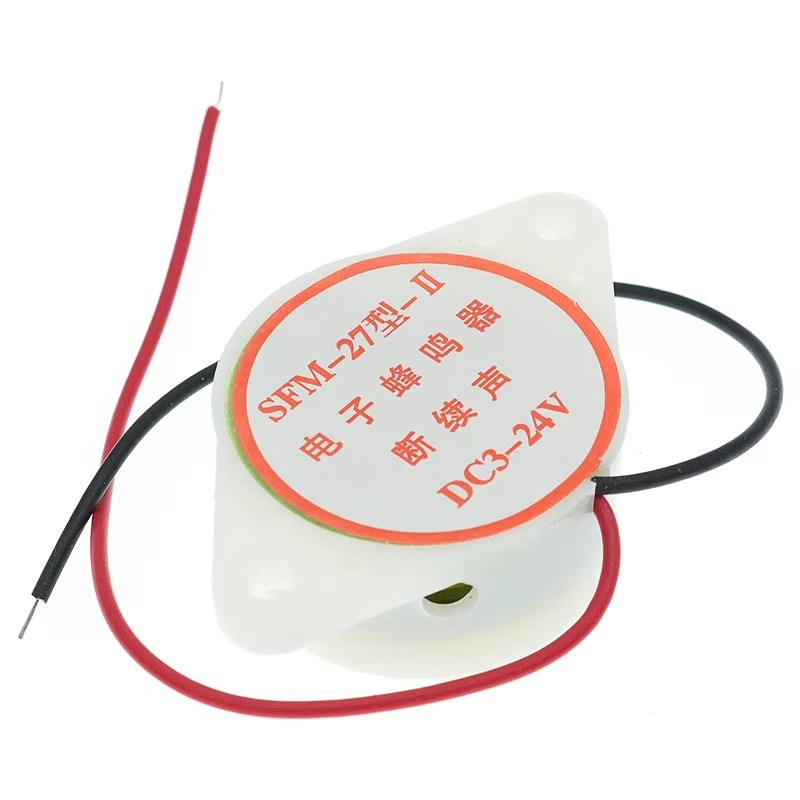

  • Model: SFM-27
  • Buzzer Type: Piezoelectric
  • Rated Voltage: 12V
  • Range of Voltage: 3-24V
  • Rated Current: 15mA at 12VDC
  • Sound Pressure Frequency: 100dB at 12VDC/30cm
  • Resonant Frequency: 2.5±0.5KHz
  • Operating Temperature: -20+45℃
  • Storage Temperature: -20+60℃
  • Color: Black

500 CFA

Rupture de stock

0
Active components, Electronic components
UGS : WEMOS2640 Catégories : ,
Description

Description

This is a generic buzzer that will make a sound when voltage is applied from 3-24VDC. Unlike some other piezo based buzzers, this buzzer will make a sound whenever voltage is applied continuously until the power source is removed.

Feature:

  • Model: SFM-27
  • Buzzer Type: Piezoelectric
  • Rated Voltage: 12V
  • Range of Voltage: 3-24V
  • Rated Current: 15mA at 12VDC
  • Sound Pressure Frequency: 100dB at 12VDC/30cm
  • Resonant Frequency: 2.5±0.5KHz
  • Operating Temperature: -20+45℃
  • Storage Temperature: -20+60℃
  • Color: Black
