This Meter Can display Voltage&Current. Input Voltage range is AC 60-500V; measuring voltage range is AC 60-500V; measuring current range is AC 0-100A; voltage measuring precision is ±2V; Current measuring precision is ±1A; working environment temperature range is -40 to 131℉.

It can be used as signal indication, warning signal, accident signal and other signals in the line of electric power, telecommunication, machine tool, ship, textile, printing and mining machinery.

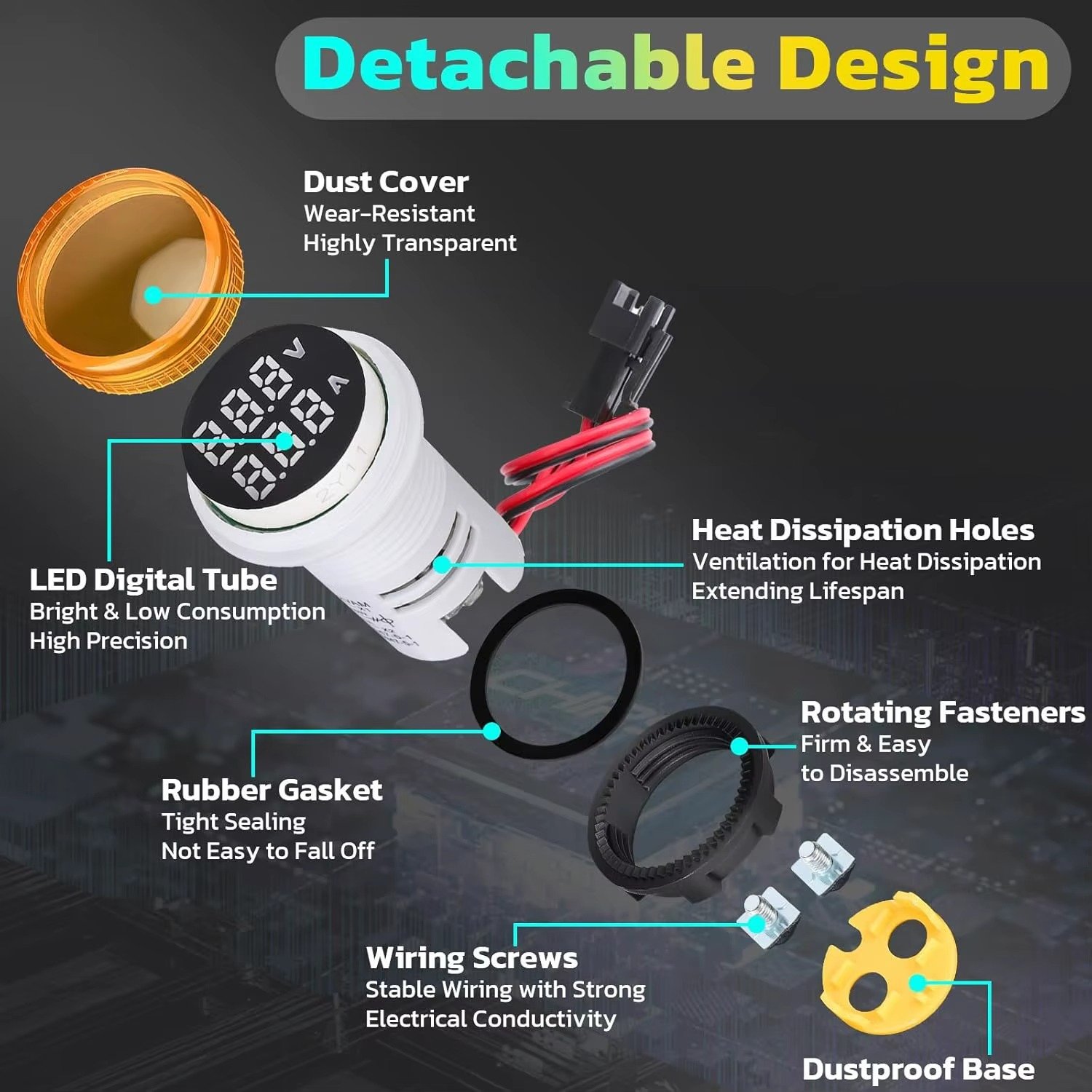

The lampshade of the voltmeter is made of high strength polycarbonate, has good impact resistance, built-in screw-type wiring, which makes more safe and convenient terminal.

The volt panel is with long service life, low energy consumption, tiny size, light weight features.

Parameters:

Input Voltage: 60~500V

Input Current: 0-100A

Voltage Measuring Range(if capable): 60~500V

Current Measuring Range(if capable): 0-100A

frequency Measuring range(if capable): 20-75Hz

Voltage Measuring Precision: ±2V

Current Measuring Precision: ±1A

Environment temperature: -40~55℃

Color: Red, Yellow, Green,Blue,White

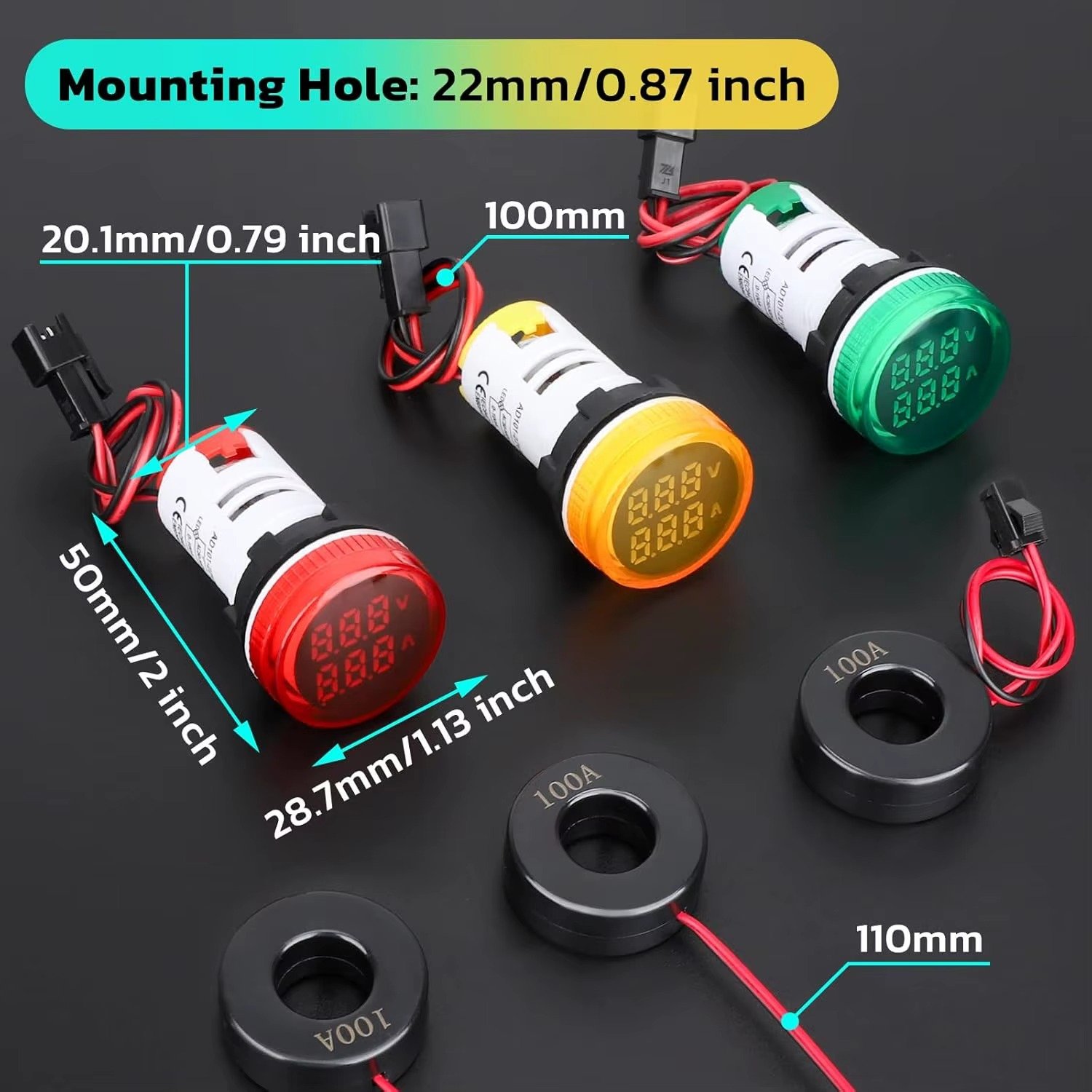

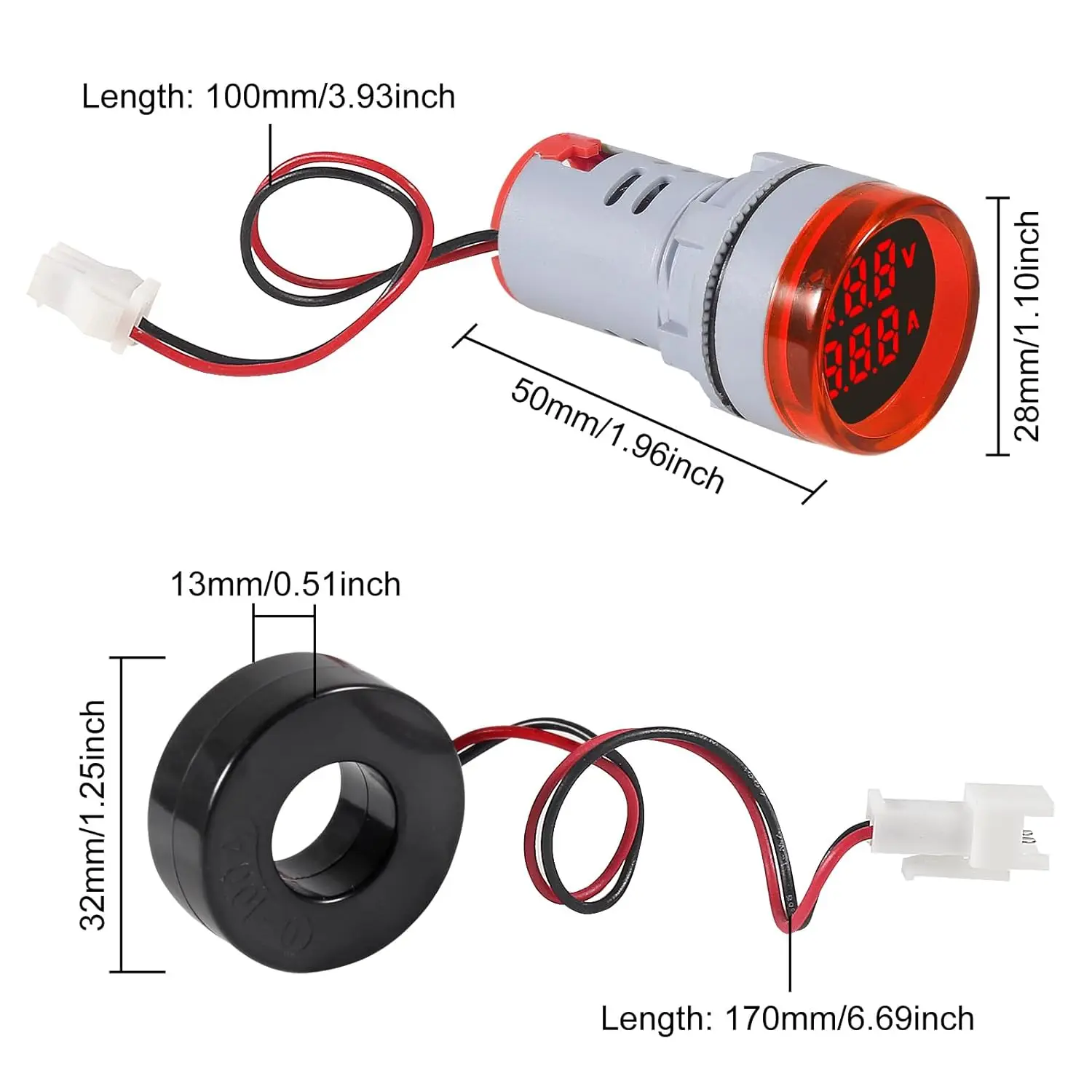

Size: 51x29mm/2.01×1.14in

Weight: 20g/0.7oz

Package Includes:

1PCS Red/Yellow/Green/Blue/White AC Voltage Display

(Please choose the model and quantity you need,we will send the goods according to your choice.)
